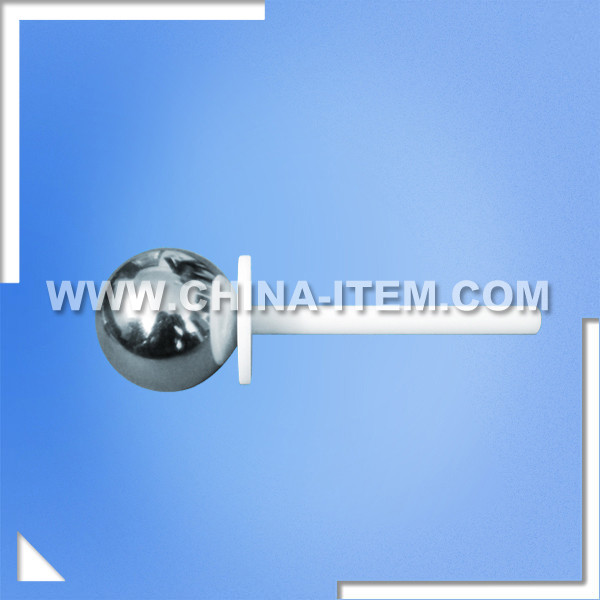

    EN61032 Test Probe A with 50 mm Ball Test

    Ask Lasest Price
    Brand Name : Julixing
    Certification : CNAS Test Report
    Model Number : LX-1A
    Price : Contacts us
    Delivery Time : 15-20 Days
    Payment Terms : T/T,Western Union,MoneyGram,AliExpress
    Supply Ability : 500 Set per month
    • Product Details
    • Company Profile

    EN61032 Test Probe A with 50 mm Ball Test

    Specification:

    Test Probe IP1X /Test Probe A
    1, According to : GB/T4208-2008 / IEC 61032:1997 / IEC 60529:2001 and UL
    2, IP1X Probe A (Test Probe A) is necessary appliance for household and similar electrical appliance of against electric shock protection test.


    Technical Parameters:
    1. Ball Diameter: 50mm
    2. Baffle Plate Diameter: 45mm
    3. Baffle Plate Thickness: 4mm
    4. Headle Diameter: 10mm
    5. Headle Length: 100mm
    6. According to IEC 61032 figure 1 (the Test probe A), table 6 GB/T4208-2008 the first characteristics (1)

    Application:
    1, Sphere can not touch the live parts or close to the dangerous parts.
    2, In the testing requirements of keep close to the dangerous part, the test steel ball without thrust need to be used with push tension meter, and steel body for protective coating need to apply to 50 + 5 n (30 + 3 n) thrust.
