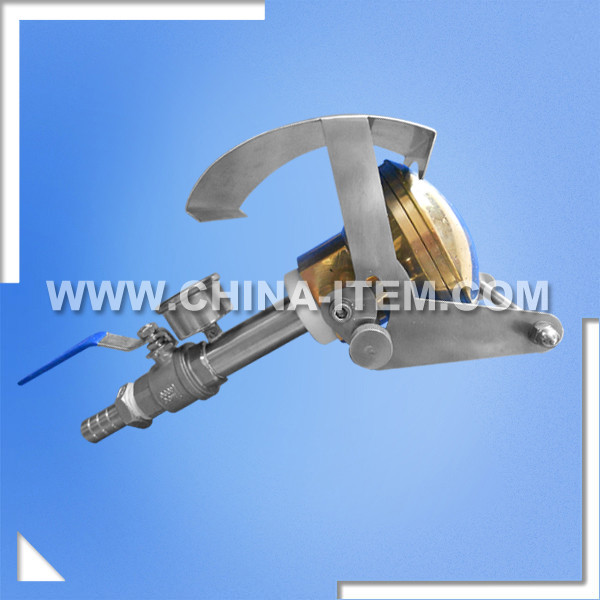

    IEC 60529 IP Testing Spray-nozzle

    IEC 60529 IP Testing Spray-nozzle


    Product information:

    The spray nozzle is designed and manufactured in accordance with IEC60529 clause IPX3 and IPX4. It is used for the waterproof test of the electric appliance. Some parts of the enclosure can not be wet by the oscillating tube. Under this circumstance, the handheld spray nozzle is used by manual.

    The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.


    Technical parameters:

    No.ItemParameter
    1Water supplyWater flow rate is 50~150kpa clean water without inclusion.
    2Spray nozzle parameters

    external diameter: Ф102mM

    spherical diameter: SФ75.5mm

    There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total.

    The hole diameter: Ф0.5mm

    It is made of brass.

    3Water flow10L/min±5%,Flow meter is adjustable
    4ReferenceIEC60529 IPX3 IPX4, IEC60598-1, IEC 60335-1, IEC60745-1
    5BaffleRemovable
    6Pressure gauge0~0.25MPa
    7Site requirements

    Dedicated IP waterproof test room,The ground should be flat with illumination

    With good function of inflow and drainage. Wall installation
